Description
- Version: 12/24V
- Use: CONSTRUCTION Standard version
- Cable outlet to the rear
- Connection 2-pin Superseal male/female
- Consumers up to 5A
- Waterproof electronics
- Piezzo switch
- Also switchable with gloves
- Extremely flat (15 mm)
- Please note: available in two different versions:

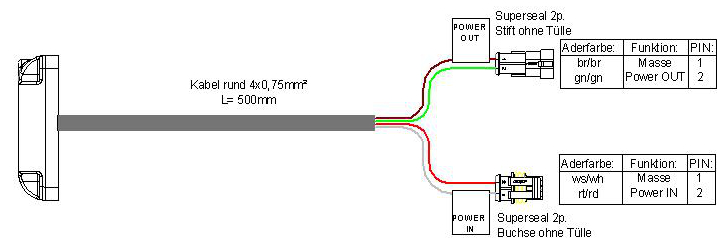

Fig.1: Supply cable 4×0.75 mm² – Superseal 2-pole connector without grommet – item no.: X5027030-041

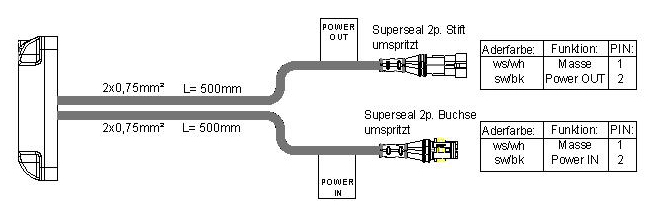

Fig.2: Supply cable 2×0.75 mm² each – Superseal 2-pole overmoulded connector – item no.: X5027030-047
Our SanuSwitch II on/off switch has been specially developed for use in the trailer sector. So
the housing and electronics are completely waterproof.
This means that the switch can also be installed outdoors without any concerns.
A green LED also indicates to the driver whether the light is currently switched on.
The switch is switched on or off using a pressure-sensitive piezo membrane.
This type of touch operation also allows switching on or off with gloves.
Due to its extremely small size, the switch is only 15 mm thick.
In addition, a built-in or surface-mounted version can be created here using adapter parts. Of course
offers a complete system including cabling and LED strips for interior lighting. This means that
vehicle manufacturers can fulfill almost any customer request with a minimum of stock parts.
