Infrared sensor V

Description

• Voltage range: 9-32V DC

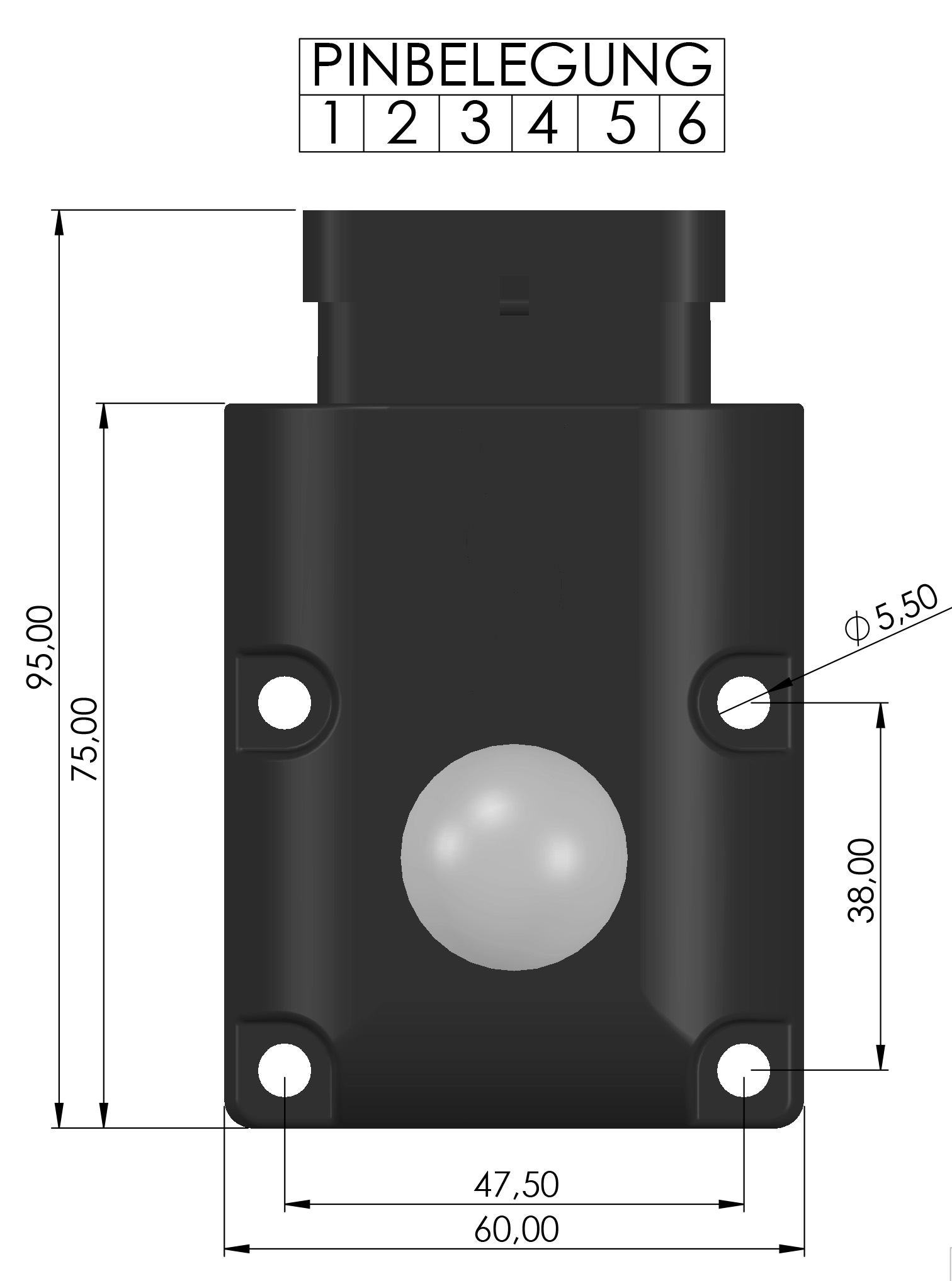

• Superseal 6-pin (M)
• Waterproof electronics

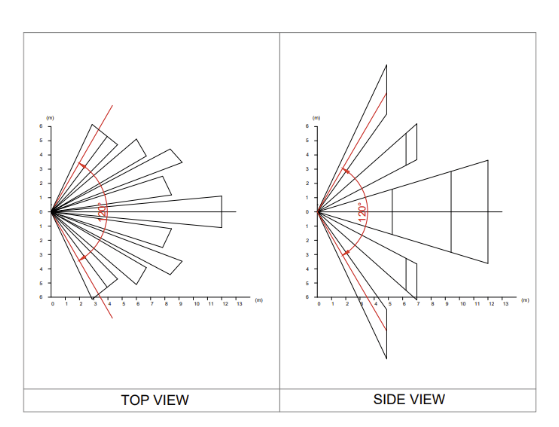

• Coverage area:
  • 360° horizontal
  • 120° vertical
• Operating radius up to 10m

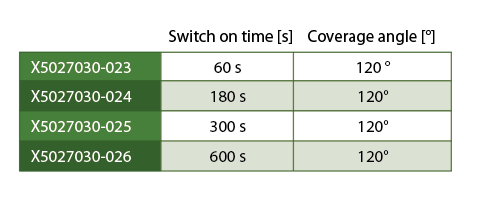

• Incl. Timer depending on the version
• Consumers up to 10A at max. 32V DC
• 2 pieces Output channels
• Switches only with movement + body heat
