Description

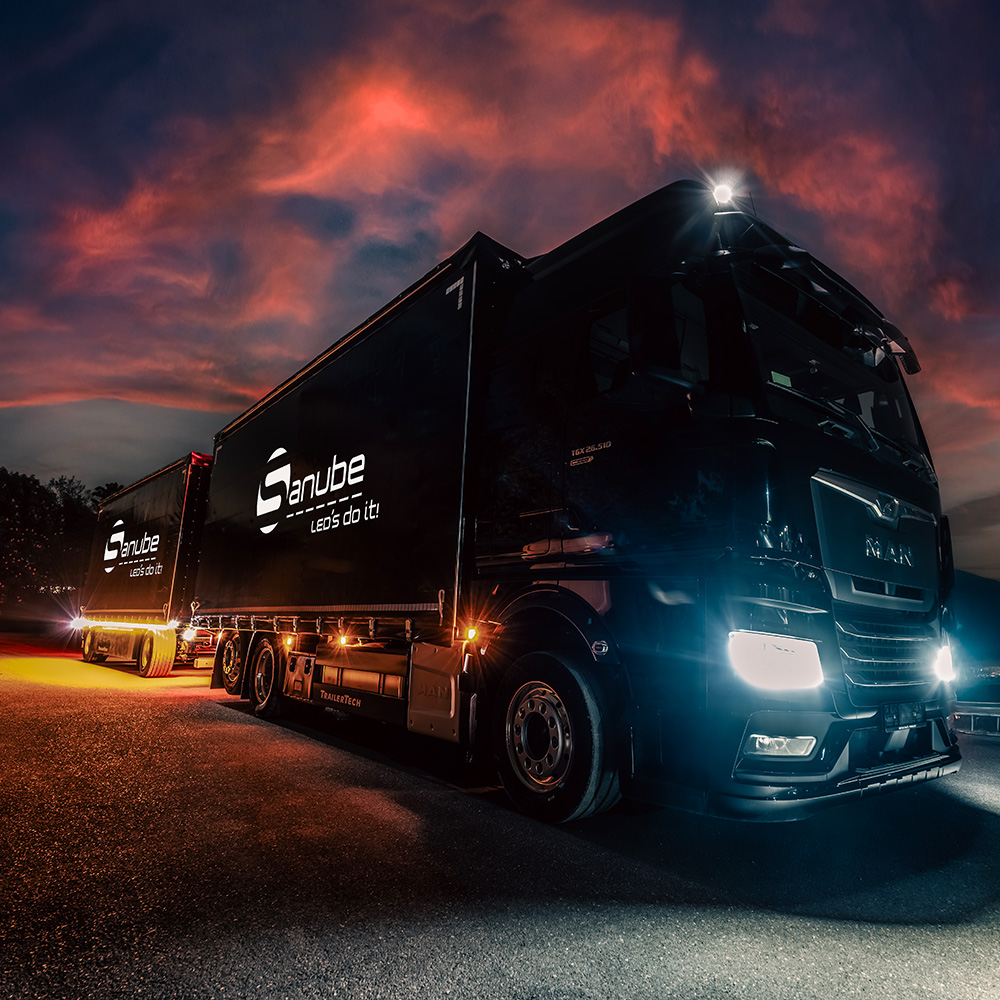

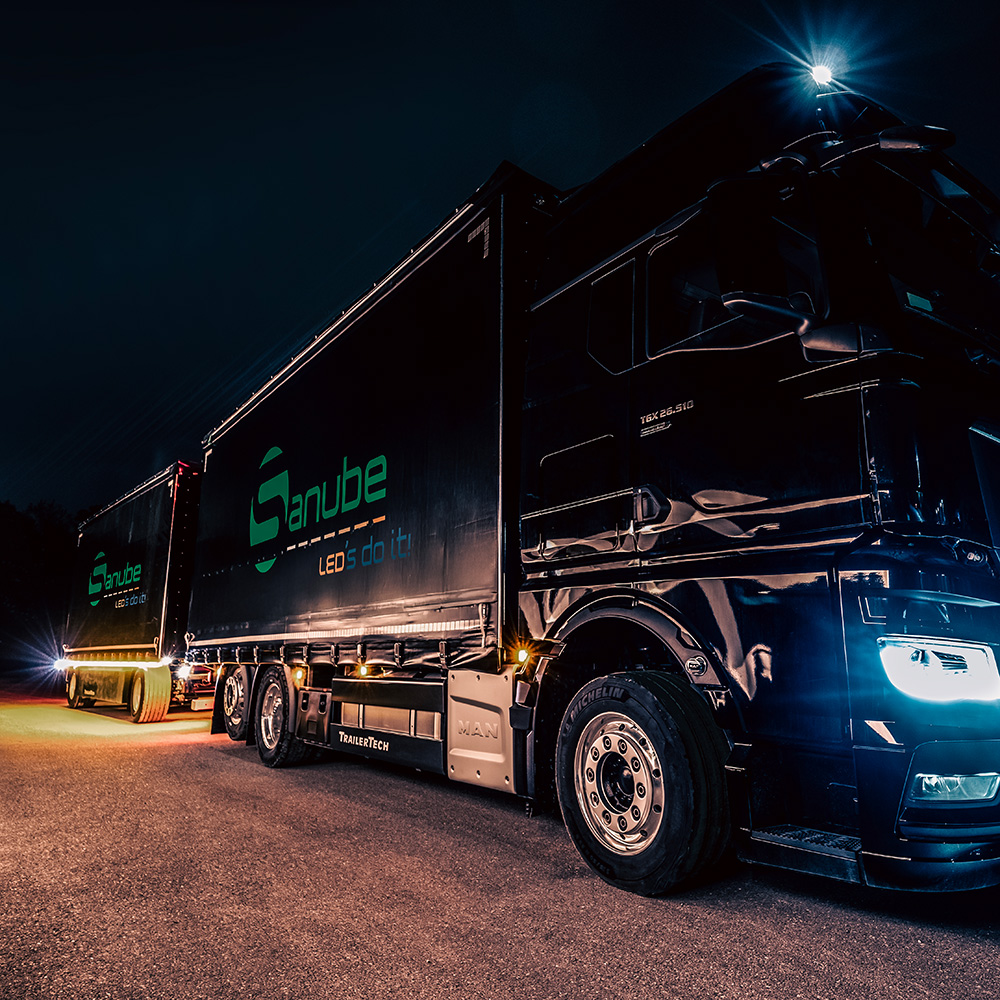

The SML-LED-stripe replaces standard single lights and is approved as a side marker light. It impresses with its excellent lateral illumination, which offers decisive advantages, especially when reversing: obstacles can be detected much earlier and more clearly in the mirror.
The LED strip is ECE, EMC R10, and ADR tested and thus meets all requirements for use in vehicles and safety-related applications.

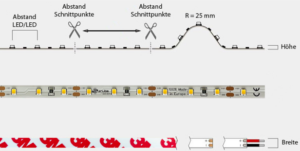

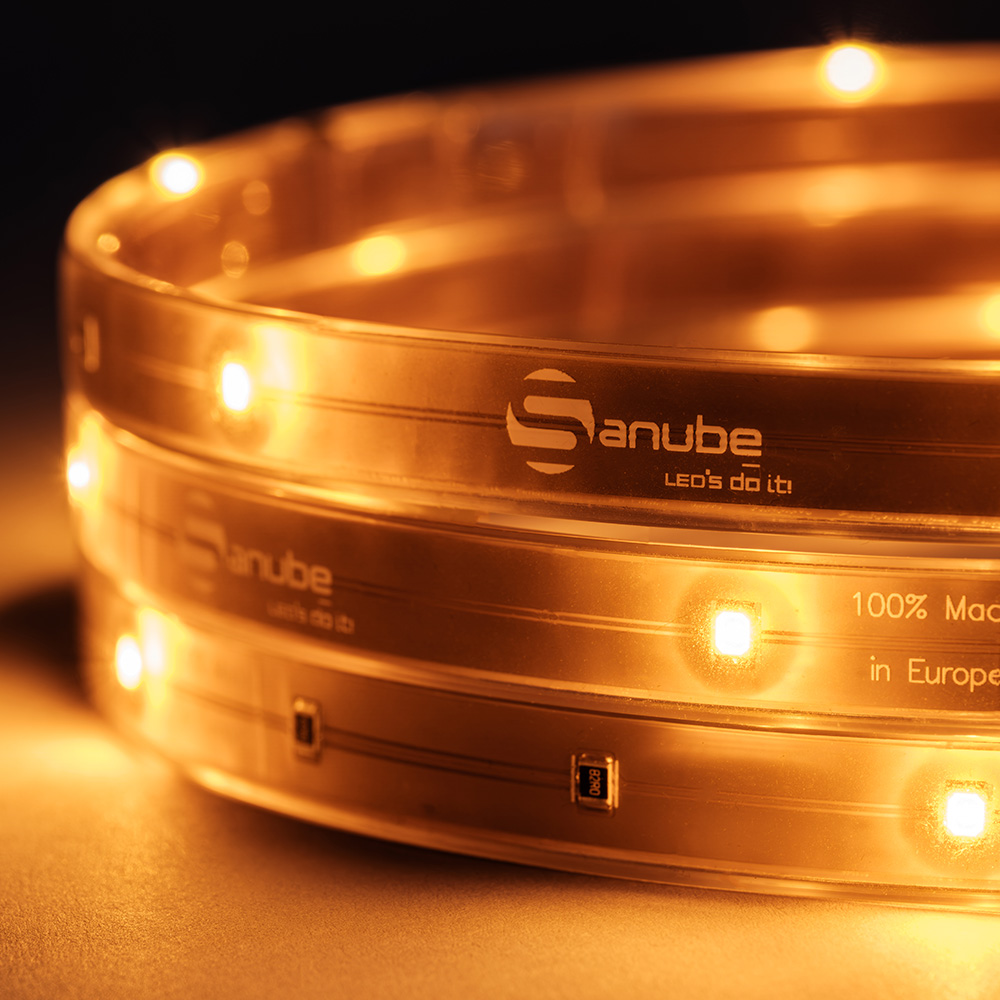

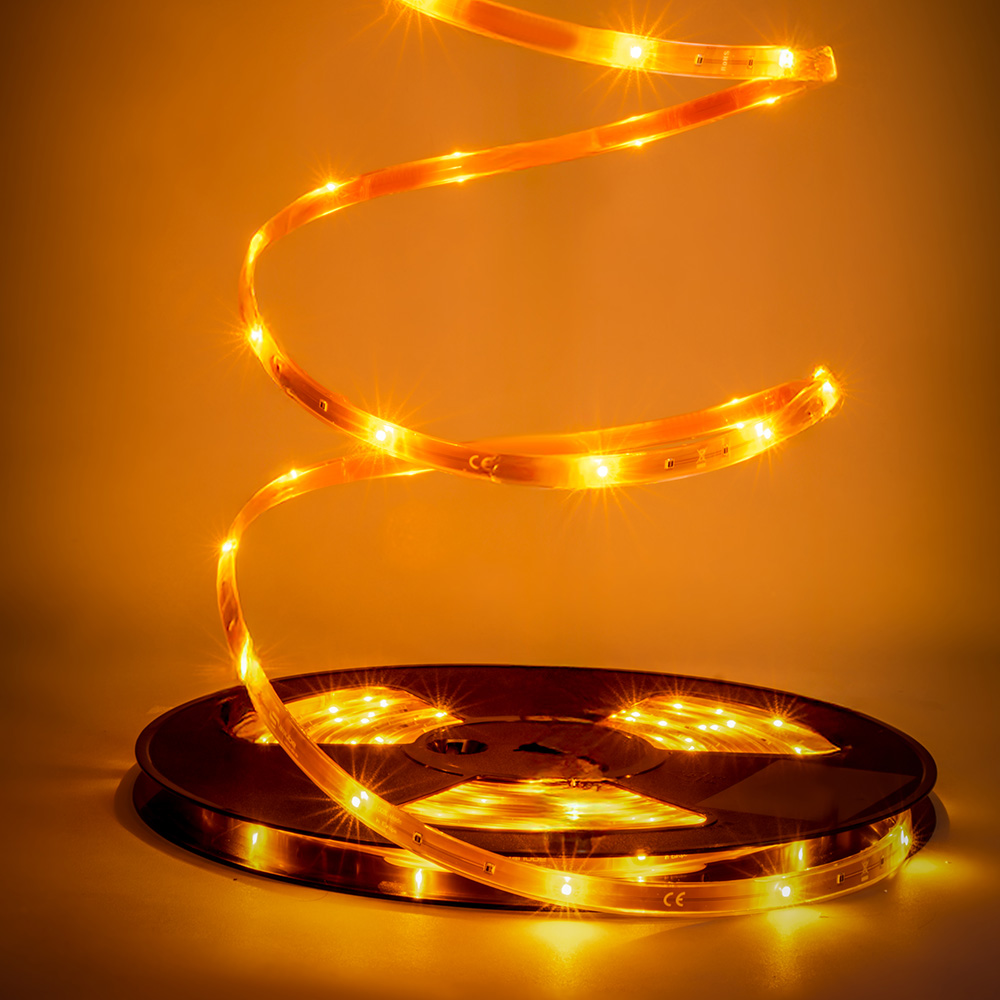

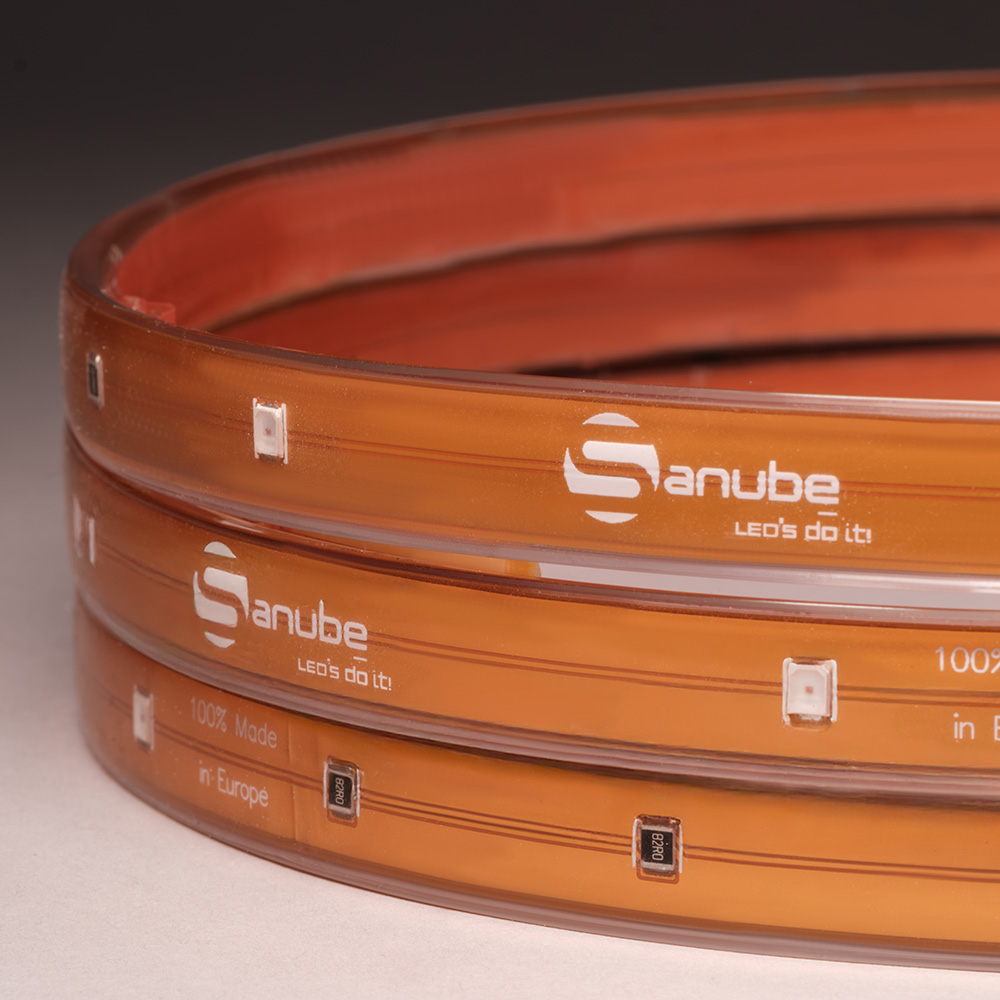

Equipped with high-quality power LEDs, the SML LED Stripe offers an LED density of 12 LEDs per meter with a board width of 10 mm. The strips are designed for 12V or 24V (Attention: voltage range must be selected, no dual voltage) and have cut points every 500 mm, allowing precise adjustment to individual lengths. The LEDs emit orange light and are specially designed for outdoor use.
Thanks to the careful selection of high-quality components, the LEDs are subjected to minimal stress. This results in low heat generation and significantly increases the service life of the product.
With protection class IP6K9K, the SML LED strip is completely dustproof and protected against high-pressure and steam jet cleaning. This makes it ideal for use in extreme and demanding conditions.
Further details on the protection classes can be found here: To the protection classes
Do you have an individual requirement? We would be happy to assist you. Create an inquiry for this product and a member of our team will contact you.
Film SML-LED-Stripe:
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

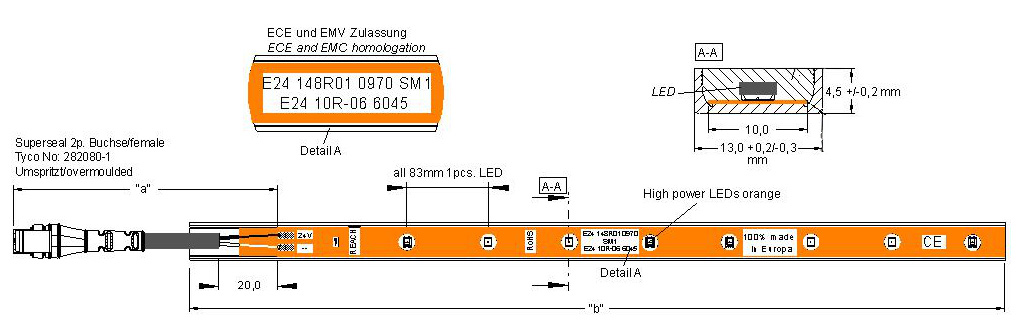

Technical data:
- Version: LED 12V or 24V
- Current consumption 24V – 160 mA
- Protection class: IP6K9KECE and EMC tested as side marker light
- Tested: ADR
- Approval no.: E24-0970
- 12 LEDs per meter
- Fastening with double-sided adhesive tape
- Connection cable 2 x 0.75 mm² with Superseal 2-pin (BU)

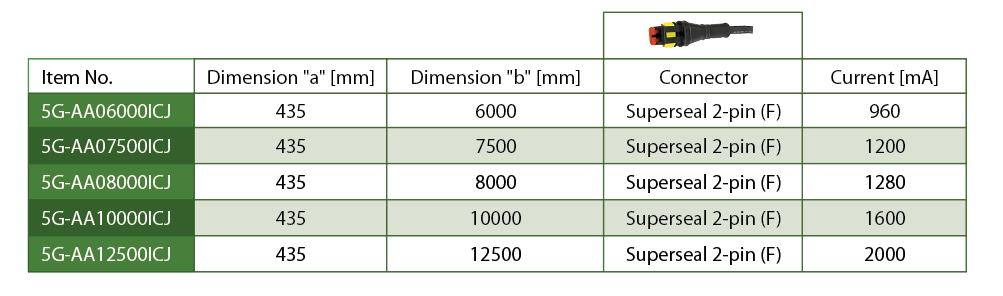

- Available in other lengths on special request
- Caution with integrated reflector – this must be mounted separately in accordance with legal requirements
- Follow the installation instructions
- Approval no.: EMC 10R / E24-10R06/03-6045
- Approval no.: SML / E24-148R01/02-0970
Installation material:
(click on the item number for more information)
- Clip for LED-Stripe – IP6K9K: Art. 308026-0362

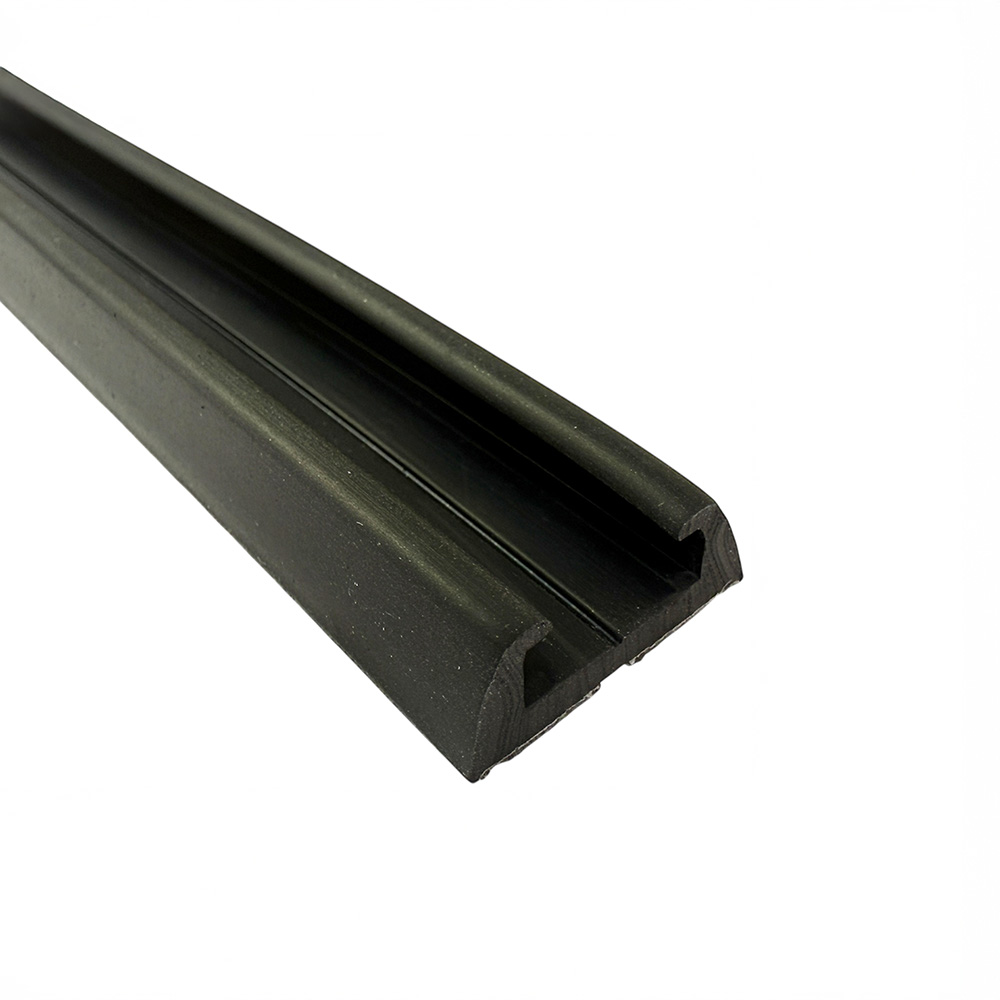

- Rubber support profile for LED-Stripe IP6K9K: Art. 219213-0002
- Insertion tool for rubber support profile: Art. 219213-1000
