Description
Our product 2G-AM-IP6K9K (dust and steam jet resistant) offers you high-quality LED strips in white with a density of 12 LEDs per meter, ideal for demanding lighting projects in the 12V and 24V range. The board width is 10 mm, which allows flexible installation even in narrow areas. The LED strips have an intersection point every 500 mm so that you can adjust them precisely to your individual lengths. The LEDs emit a cool white light and are especially suitable for outdoor use in trailers.
Thanks to the special choice of components, our LED Stripes are only subjected to very low loads, which means that the components generate little heat and at the same time increase their longevity.
Our LED-Strip 2G-AM-IP6K9K has protection class IP6K9K (dust and steam jet resistant). This makes it ideal for safe outdoor use and under demanding conditions.
The Stripe is also EMC-R10 and ADR tested and therefore meets all requirements for use in vehicles and safety-relevant applications.
Further details on the protection classes can be found here: To the protection classes
Do you need an individual requirement? We will be happy to support you. Create a request for this product and a member of staff will get back to you.
Technical data:
- 12 power LEDs per meter
- Connection: Superseal 2-pin BU overmolded
- Versions WITH and WITHOUT adhesive tape on the back
- Installation suggestion without adhesive tape: insertion into a rubber or metal profile
- Efficient interior lighting for luggage compartments and tarpaulin bodies

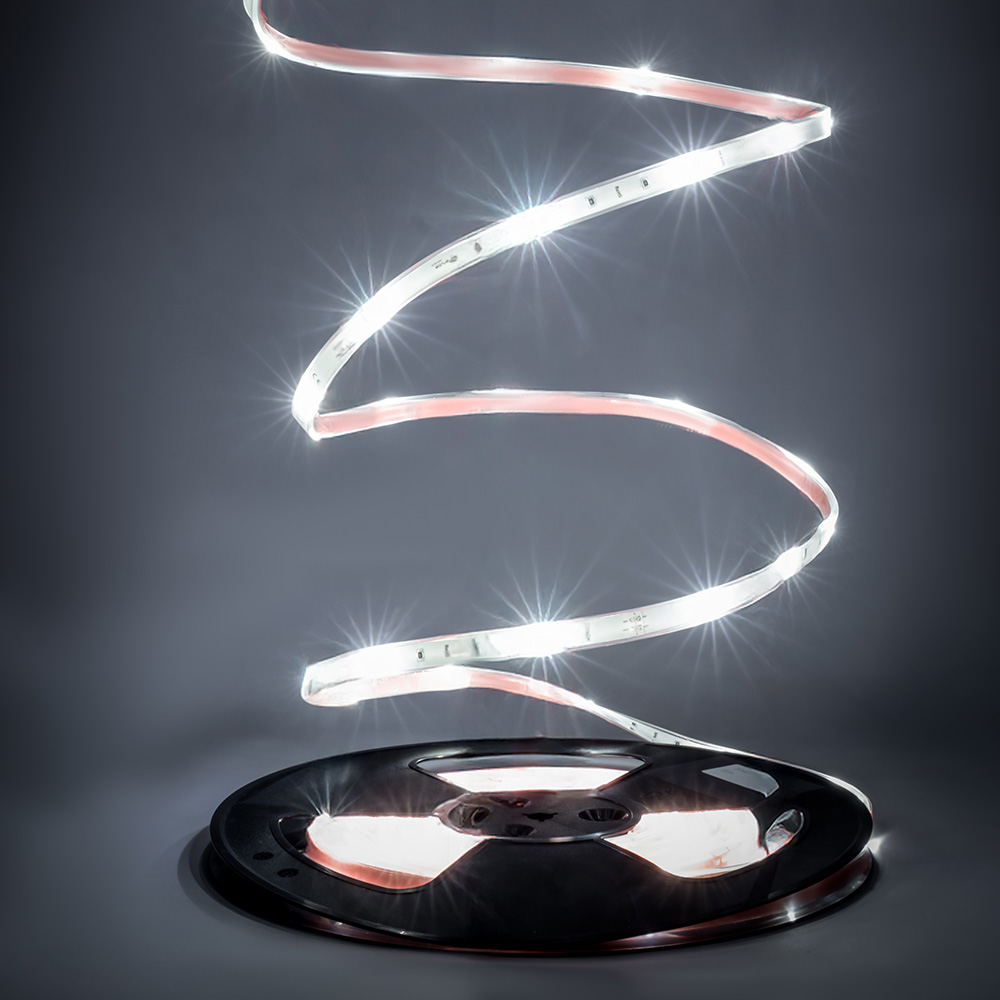

- Packaging: individually on plastic reel in cardboard box
- Application range: -30° to +70° C
- Processing temperature: min. +10° to max. +40°
- ADR tested ECE R105-06
- EMC tested E9*10R06/02*24343
- Technical data:

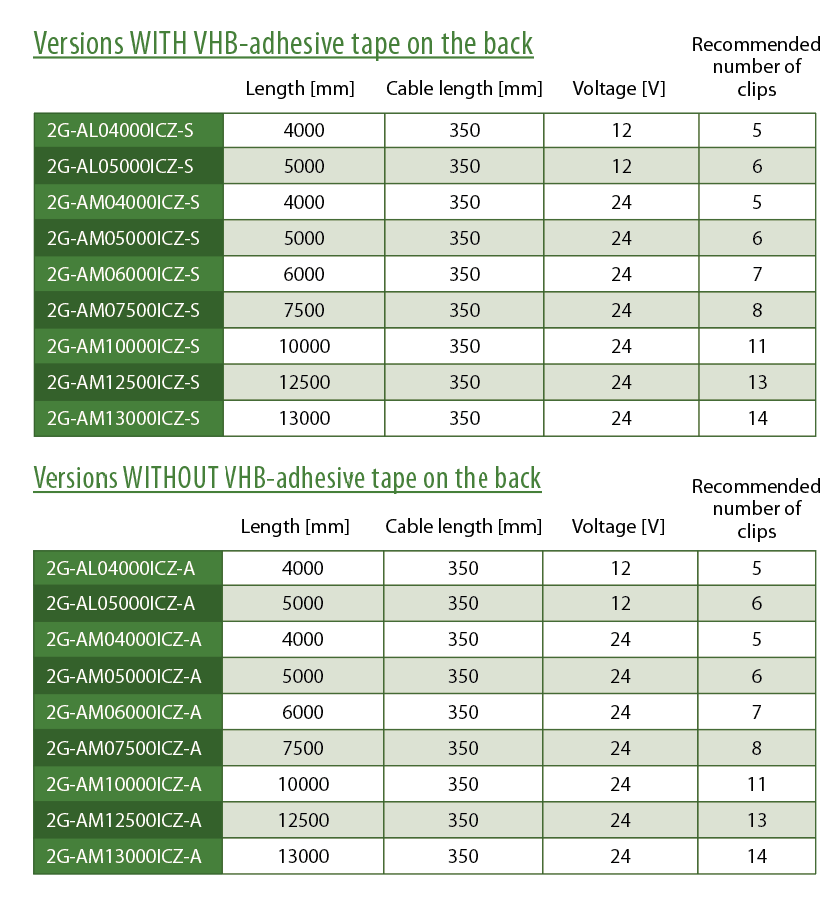

- Voltage: see table
- Brightness: 395 lumens/meter
- Light color: 6500 Kelvin
- LEDs/meter: 12 white
- Tightness class: IP6K9K only with original length
- Cable length: 350 mm
Mounting material:
(click on the article number for more information)
- Clip for LED strip – IP6K9K: Art. 308026-0362
- Rubber support profile for LED strip IP6K9K: Art. 219213-0002
- Pull-in auxiliary tool for rubber support profile: Art. 219213-1000
