Description

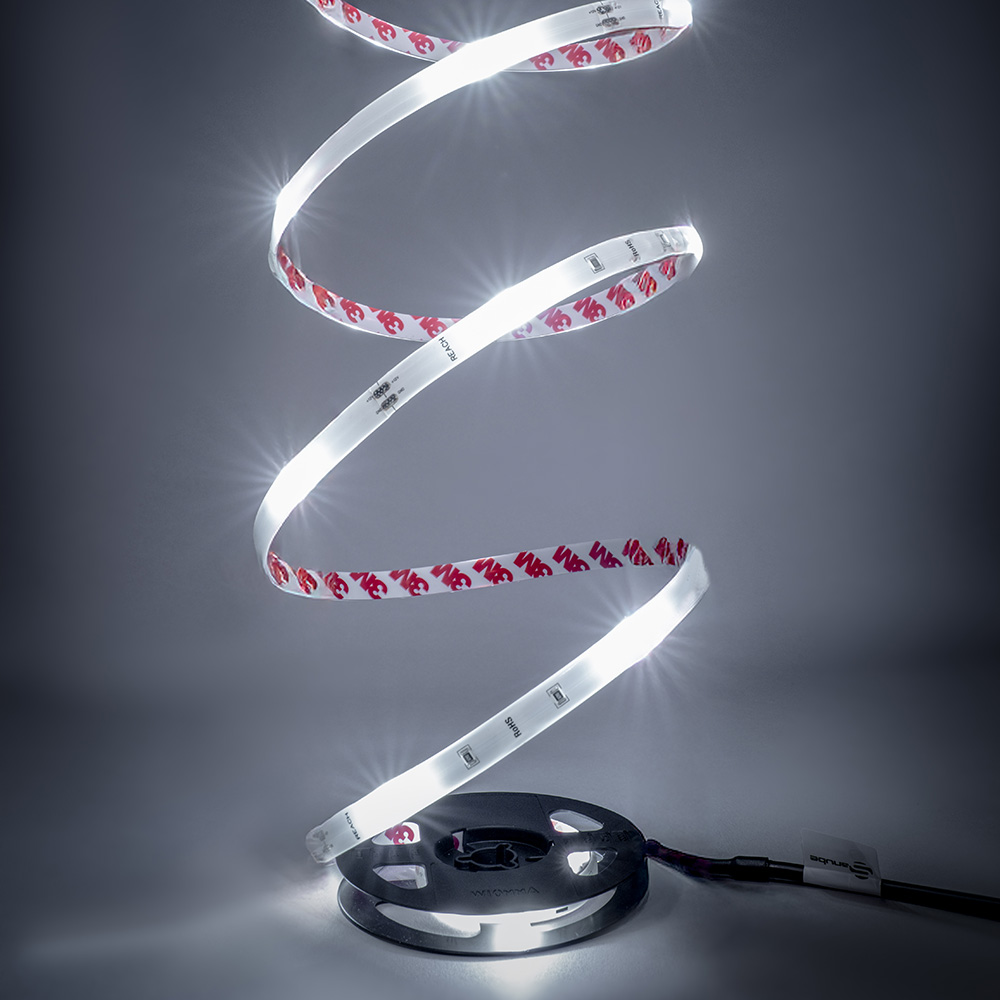

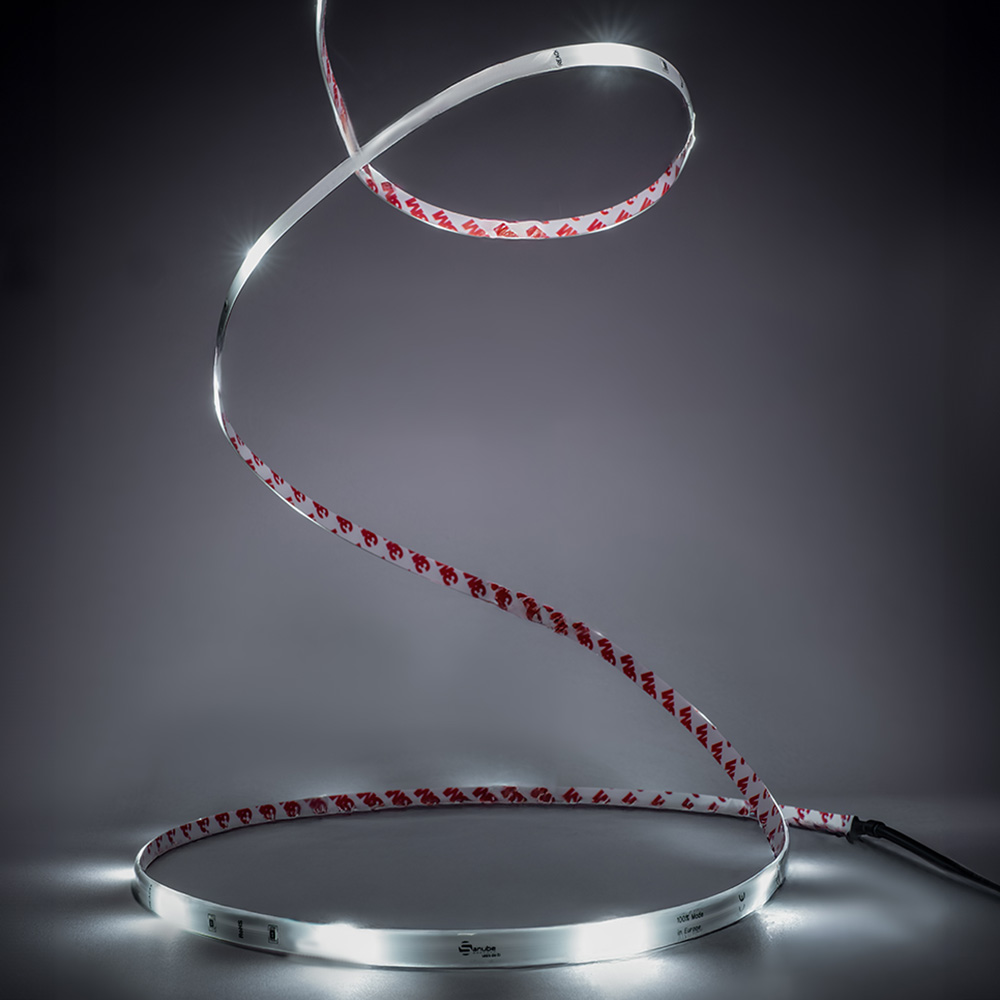

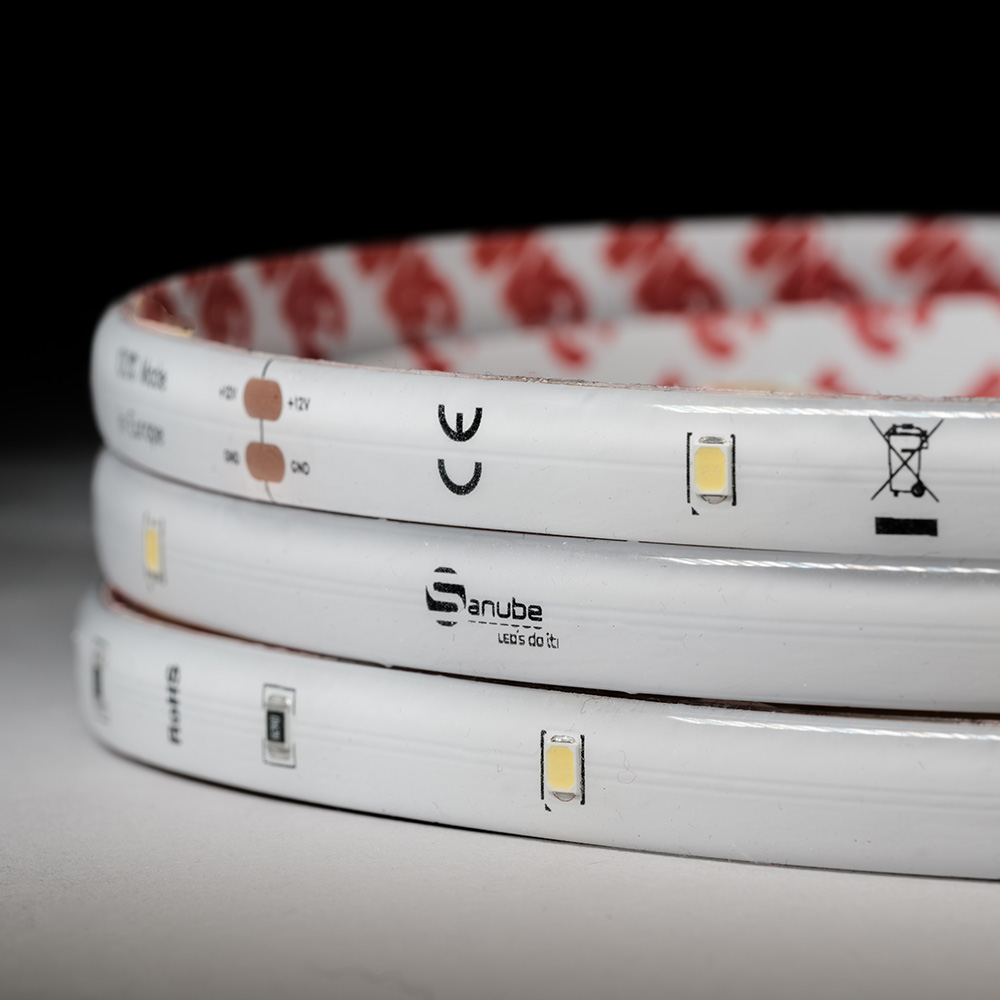

Our 2G-AM product offers you high-quality LED strips with a density of 12 LEDs per metre, ideal for demanding lighting projects in the 24V range. The PCB width is 10 mm, which enables flexible installation even in narrow areas. The LED strips have an intersection point every 500 mm so that you can adjust them precisely to your individual lengths. The LEDs emit a cool white light and are especially suitable for use in trailers.
Thanks to the special choice of components, our LED Stripes are subjected to very little stress, which means that the components generate little heat and at the same time increase their longevity.
Thanks to different encapsulation options, we offer protection classes for indoor and outdoor use so that our LED Stripes can be used safely in both dry and damp environments.
Depending on the encapsulation options, we can offer you different IP protection classes. Further details on the protection classes can be found here: To the protection classes
Do you need a customised requirement? We would be happy to support you. Create an enquiry for this product and a member of staff will get back to you.

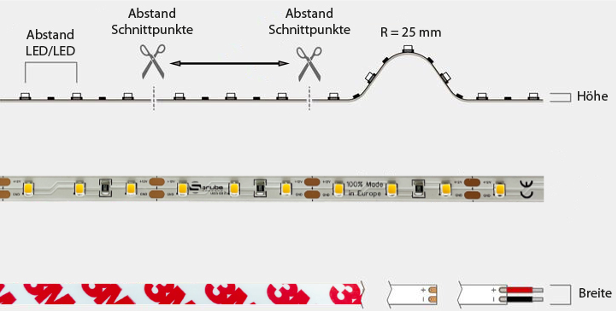

Example of the intersection point:
Technical data:
- Version: LED 24V
- 12 high-power LEDs per meter
- Connector: Superseal 2-pin female
- Adhesive tape mounted on the back
- Suitable for indoor lighting
- Packaging: individually on plastic reel in cardboard box
- Operating range: -30° to +70° C
- Processing temperature: min. +10° to max. +40° C
- Technical data:

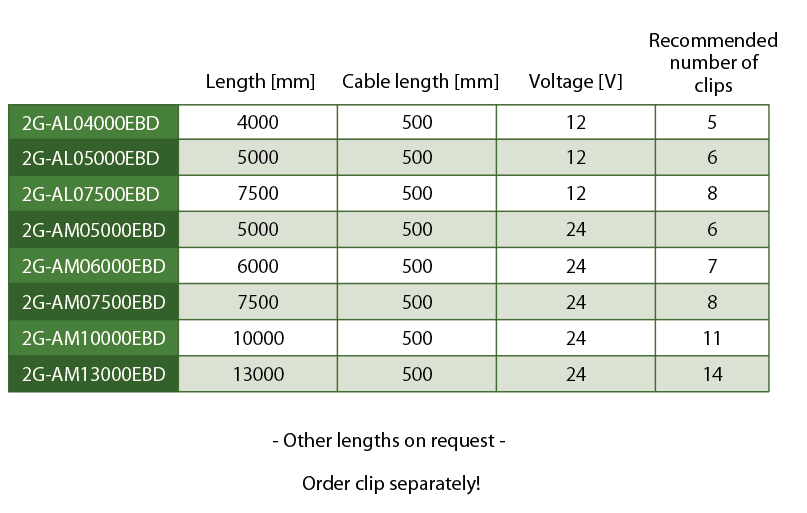

Voltage: see table variants
Brightness: 406 lumens/meter
Light color: 6100 Kelvin
LEDs/meter: 12 pcs. white
Ingress protection: IP65 only at original length
Mounting material:
(click on the item number for more information)
- Clip for LED-Stripe – IP65: Art. 308026-0332
